Roland TR-08 Rhythm Composer

drum machines roland boutique rhythm composers Japan

Last updated: 2026-09-21

The Roland TR-08 is a compact Boutique-series recreation of the classic TR-808 Rhythm Composer: Analog Circuit Behavior modeling, a 16-step sequencer with sub-steps, USB audio/MIDI, and the familiar 808 voice set in a battery-powered metal-panel module.

Photograph of the Roland TR-08 Rhythm Composer, cataloged as a drum machines. — Roland TR-08 Rhythm Composer · roland-tr-08 · Hamamatsu, Hamana-ku, Shizuoka, Japan · 34.8201, 137.7339

What it is

The Roland TR-08 Rhythm Composer is an ultra-compact recreation of the legendary TR-808 drum machine in the Roland Boutique format. Roland announced it on 8 August 2017 and models the original analog circuits with proprietary Analog Circuit Behavior (ACB) technology so the interface quirks and voice interactions stay close to the hardware that shaped hip-hop, techno, house, and countless other styles.

Specifications sourced from Roland's official product page and cross-checked against manufacturer documentation. Historical claims are independently cited in the Sources section below. Last verified: 2026-09-02.

Specs that matter

Official Roland specifications list a 16-step sequencer with 16 sub-steps per step and 16 pattern banks (12 × 16 patterns plus 4 × 16 intro/fill-ins). Instrument voices cover bass drum, snare, conga/tom pairs, claves/rim shot, maracas/hand clap, cowbell, cymbal, and open/closed hi-hat for 16 named voices in total. Physical dimensions are 308 × 130 × 51 mm; weight 1.3 kg including batteries and DK-01 Boutique Dock.

Connectivity: DIN MIDI IN/OUT (full-size 5-pin connectors) and a USB Micro-B port carrying both USB-MIDI and ten-channel USB audio with one channel per instrument group, class-compliant on macOS (Roland driver required on Windows). The same USB port supplies bus power at ~500 mA. A built-in powered mini-speaker lets you audition beats without a PA or headphones.

Per-instrument controls extend the original TR-808: a global Compressor is available, and selected voices gain dedicated Gain, Tune, and Pan controls not present on the vintage unit. The MENU/SUB STEP button switches the 16 step buttons into sub-step mode, giving each beat step up to 16 subdivisions for up to 256 trigger points per bar for rolling hi-hats and detailed snare fills.

What's in the box

DK-01 Boutique Dock (black adjustable-angle desktop stand)
Owner's Manual (also available as a downloadable PDF below)
DK-01 Owner's Manual
Leaflet: "USING THE UNIT SAFELY"
4 × AA alkaline batteries (LR6): ready to play out of the box

No power adapter is included; four AA batteries or USB bus power are the only power sources.

Legacy

The original TR-808 (1980) was a commercial disappointment at launch: its purely electronic drum sounds were considered inferior to acoustic recordings, and Roland discontinued production in 1983 after approximately 12,000 units. The specific out-of-spec transistors that gave the 808 its sound became commercially unavailable as semiconductor manufacturing quality improved industry-wide, and Roland discontinued the unit as a result. Original units sold for as little as $100 on the used market through much of the 1980s.

The subsequent decade proved that assessment wrong. Afrika Bambaataa's Planet Rock (1982) and Marvin Gaye's Sexual Healing (1982) brought the 808 into mainstream consciousness; Chicago house and Detroit techno built their sound architectures around its booming kicks, snappy snares, and sizzling hi-hats. By the early 1990s the TR-808 was foundational to hip-hop, and the 2010s trap era made the 808 kick drum inescapable in mainstream pop. Original units climbed to thousands of dollars on the used market.

Roland's 2017 TR-08 Boutique reissue uses ACB component-level circuit modeling, not sample playback. The behavior of each analog stage is modeled down to transistor level, preserving the same nonlinear voice interactions that defined the original, while adding USB audio/MIDI, sub-steps, and per-voice compressor/gain/tune/pan that modern production workflows expect.

Sources

Roland TR-08 specifications: dimensions, instruments, accessories, power
Roland press release (8 Aug 2017): ACB technology, Boutique format launch
Roland corporate HQ address
Roland TR-808, Wikipedia: production history, discontinuation, musical legacy

Metrics

Weight	1.3 kg
Width	308 mm
Height	51 mm
Depth	130 mm
Sequencer Steps	16
Pattern Banks	16
Instrument Voices	16

Descriptors

Sound Engine	Analog Circuit Behavior (ACB)
Form Factor	Boutique module
Sound Character	Booming kick, snappy snare, sizzling hats, and the unmistakable 808 cowbell. Circuit-modeled so voices interact with the same analog quirks as the original.
Power Source	4× AA batteries (NiMH or alkaline) or USB bus power (~500 mA)
Brand	Roland
Signature Genre	hip-hop
Release Date	August 8, 2017

TR-08 instrument voices (11 tracks, 16 named voices) (11)

The TR-08 recreates the classic TR-808 instrument set. Several tracks share a voice selector (conga/tom, claves/rim, maracas/clap).

Voice	Name	Family	Tags	Alternate Voice	MIDI Note

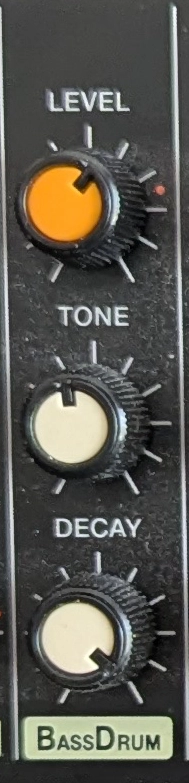

BD	Bass Drum	Kick	boom; 808-kick		36

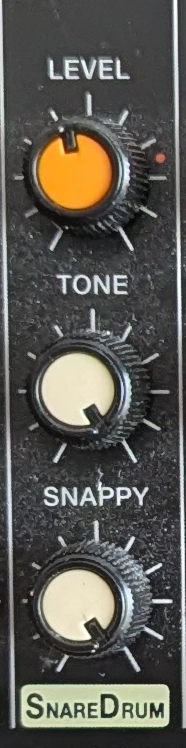

SD	Snare Drum	Snare	snappy; backbeat		38

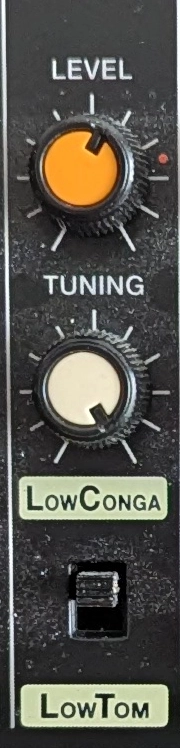

LT	Low Tom	Tom	tom; tuned	LC (Low Conga)	43

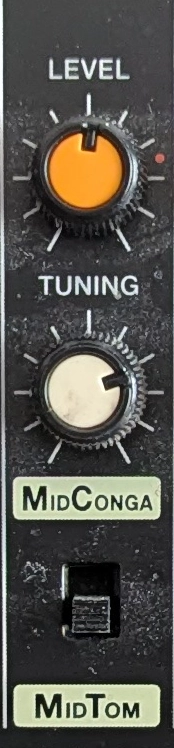

MT	Mid Tom	Tom	tom; tuned	MC (Mid Conga)	47

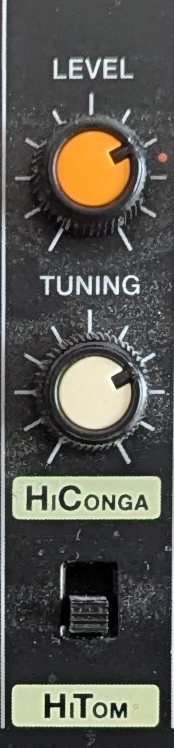

HT	Hi Tom	Tom	tom; tuned	HC (Hi Conga)	50

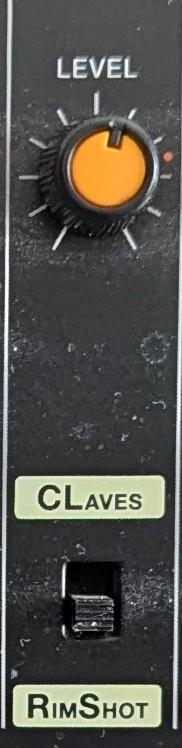

RS	Rim Shot	Percussion	click; rim	CL (Claves)	37

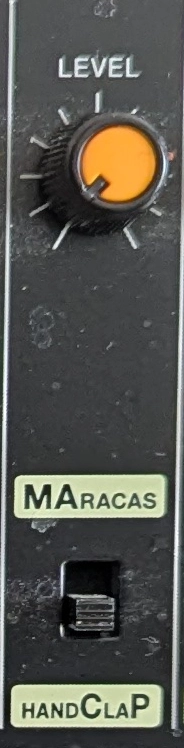

CP	Hand Clap	Percussion	clap; layer	MA (Maracas)	39

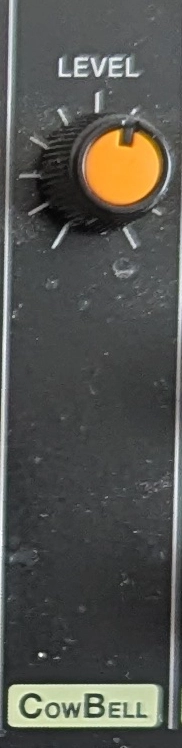

CB	Cowbell	Percussion	cowbell; iconic		56

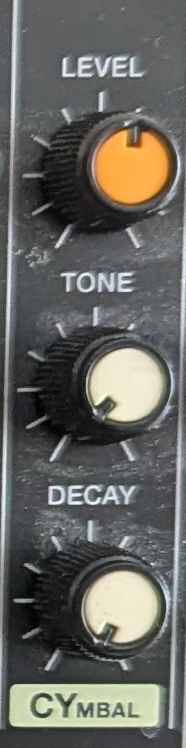

CY	Cymbal	Cymbal	sizzle; crash		49

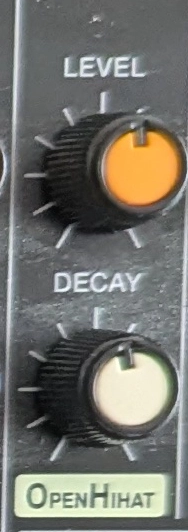

OH	Open Hi-Hat	Hi-Hat	open-hat; rolls		46

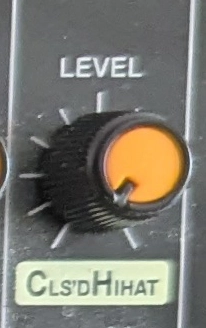

CH	Closed Hi-Hat	Hi-Hat	closed-hat; 16ths		42

Downloads

TR-08 Owner’s Manual (English, Roland)

Frequently asked questions

Is the Roland TR-08 a true analog TR-808?

No. The TR-08 uses Roland Analog Circuit Behavior (ACB) digital modeling of the original analog circuits. It is designed to recreate the 808’s sound, interface, and quirks in the Boutique format rather than rebuild the 1980s analog hardware.

How many steps does the TR-08 sequencer have?

Sixteen steps, each with up to 16 sub-steps. That sub-step grid is the main modern sequencing upgrade over a stock vintage 808 for rolls and detailed fills.

Can the TR-08 run on batteries?

Yes. It runs on four AA Ni-MH or alkaline cells, or on USB bus power (about 500 mA). Roland rates continuous Ni-MH use at roughly six hours depending on batteries and conditions.

Does the TR-08 include individual outputs?

The hardware jack field is compact (stereo output, phones, mix in, trigger out, MIDI), but USB audio provides ten separate outputs for DAW routing.

What dock ships with the TR-08?

Roland includes the DK-01 Boutique Dock (black) for angled desktop viewing, along with the owner’s manuals and four alkaline AA batteries.

When was the TR-08 announced?

Roland announced the TR-08 Rhythm Composer on 8 August 2017 (press release dated that day), as part of the Boutique instrument lineup.

What's the difference between the TR-08 and the original TR-808?

The original TR-808 (1980) used discrete analog circuits and was discontinued in 1983 after roughly 12,000 units. The TR-08 uses Roland's Analog Circuit Behavior (ACB) technology, which is component-level digital modeling of those circuits, to recreate the 808's sound and response in a smaller, lighter format. The TR-08 adds features the original lacked: 16 sub-steps per step, a global compressor, per-voice gain/tune/pan controls for selected instruments, USB audio/MIDI (ten separate audio channels), and a built-in speaker.

Does the TR-08 work as a USB audio interface for a DAW?

Yes. Connected via USB Micro-B, the TR-08 operates as a class-compliant audio interface on macOS without additional drivers. Windows requires the free Roland driver. It presents ten separate audio output channels to the DAW (one per instrument group) enabling per-voice recording and mixing without additional hardware.
