What it is

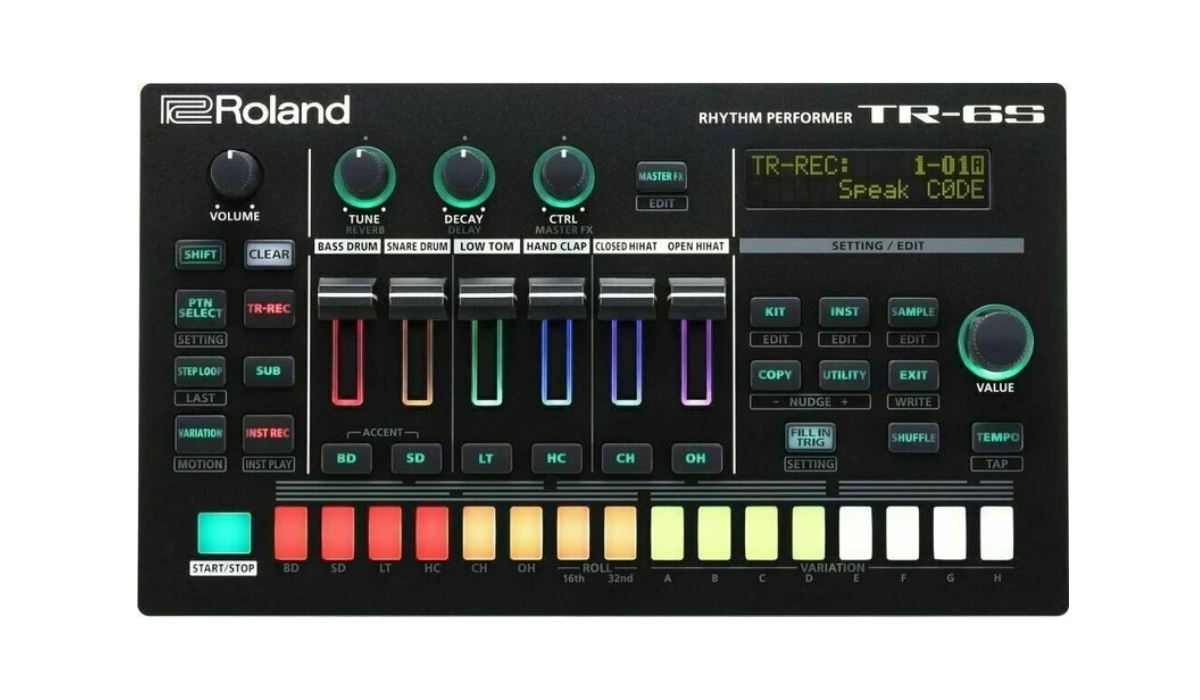

The Roland TR-6S Rhythm Performer is Roland's most compact TR-series drum machine, packing ACB (Analog Circuit Behavior) modeling and per-track sample loading into a battery-powered portable format. Roland introduced the TR-6S in 2020 as a smaller, lower-cost complement to the TR-8S, with 6 configurable tracks instead of 11 and the ability to run on four AA batteries.
Specifications sourced from Roland's TR-6S spec page and the TR-6S MIDI Implementation Chart (Apr 2020). Dimensions and accessories confirmed from the Roland spec page. Last verified: 2026-09-04.
Specs that matter
The TR-6S provides 6 configurable instrument tracks, each assignable to any ACB voice from the built-in library (TR-808, TR-909, TR-606, TR-707, CR-78, and more per Roland's current feature description) or to a custom WAV or AIFF file loaded from an SD card. The 16-step sequencer supports sub-steps, flam, probability, step loop, and motion recording.
On-board effects include per-instrument FX (HPF, LPF, compressor, drive, saturator, frequency shift, and others), reverb, delay, and a master FX bus with additional options including scatter. The TR-6S also functions as a USB audio and MIDI interface.
Connectivity: a stereo OUT (L/MONO, R) on 1/4-inch jacks, a stereo PHONES jack (3.5mm), standard DIN 5-pin MIDI IN and OUT (no MIDI Thru; confirmed from Roland spec sheet), and a USB type-B port carrying both audio and MIDI. There are no individual voice outputs. Power runs on four AA batteries (alkaline 4.5 hours; Ni-MH 5.5 hours per Roland spec with 1,900 mAh cells) or USB bus power at 500 mA. External storage via SD card (SDHC supported) for backup and sample import.
Physical dimensions per Roland spec: 224(W) x 132(D) x 60.1(H) mm, weight 705 g including batteries.
What's in the box
- TR-6S Rhythm Performer unit
- 4× AA alkaline batteries (LR6)
- Leaflet "Read Me First"
Note: No AC adapter is included. The TR-6S runs on batteries or USB bus power only.
Design context
The TR-6S belongs to a class of instruments that prioritizes portability and accessibility over studio-grade connectivity. Where the TR-8S and TR-08 target producers working at a desk or in a live rig, the TR-6S targets mobile production: compact enough to travel easily, battery-powered, and capable of running standalone without a power outlet.
Within Roland's current TR lineup, the TR-6S sits below the TR-8S in track count and connectivity but matches it in sound-engine depth. The same ACB voice library and sample loading engine are available, just across 6 tracks instead of 11. The TR-6S also expands the ACB instrument set available compared to the TR-8S, with firmware updates adding CR-78 and additional sources not present on the TR-8S at launch. The absence of individual outputs and the six-track limit reflect the TR-6S's positioning as a portable standalone device rather than a studio hub.
Sources
- Roland TR-6S specifications -- track count, connectors, power, accessories, dimensions (confirmed 2026-09-04)
- Roland TR-6S MIDI Implementation Chart -- 6 default MIDI note assignments, version 1.00, Apr 22 2020
- Roland TR-6S owner's manual (downloadable from Roland support portal) -- full sequencer and effects documentation
Metrics
| Sequencer Steps | 16 |
|---|---|
| Instrument Voices | 6 |
| Width | 224 mm |
| Height | 60.1 mm |
| Depth | 132 mm |
| Weight | 0.705 kg |
Descriptors
| Brand | Roland |
|---|---|
| Sound Engine | ACB + sample playback |
| Form Factor | Compact portable |
| Power Source | 4x AA batteries or USB bus power (500 mA); no adapter included |
| Release Date | April 22, 2020 |
Instrument tracks (default kit)
The TR-6S has 6 configurable instrument tracks. Assignments and MIDI notes shown are from the factory default kit per Roland's MIDI implementation chart (Apr 2020). HC = Hand Clap (MIDI 39). Each track can be reassigned to any ACB voice or custom sample.
| Track | Default Voice | Family | Tags | MIDI Note |
|---|---|---|---|---|
| BD | Bass Drum (TR-808 ACB) | Kick | 808-kick; acb | 36 |
| SD | Snare Drum (TR-808 ACB) | Snare | 808-snare; acb | 38 |
| LT | Low Tom (TR-808 ACB) | Tom | tom; acb | 43 |
| HC | Hand Clap (TR-808 ACB) | Percussion | clap; acb | 39 |
| CH | Closed Hi-Hat (TR-808 ACB) | Hi-Hat | closed-hat; acb | 42 |
| OH | Open Hi-Hat (TR-808 ACB) | Hi-Hat | open-hat; acb | 46 |
Frequently asked questions
How is the TR-6S different from the TR-8S?
The TR-6S has 6 configurable tracks versus the TR-8S's 11. The TR-6S runs on AA batteries and requires no power adapter; the TR-8S requires a DC adapter. The TR-6S outputs through a single stereo mix jack (no individual outputs); the TR-8S provides 6 assignable direct outputs. Both share the same ACB engine and support per-track sample loading.
Can the TR-6S run on batteries?
Yes. The TR-6S runs on four AA batteries: approximately 4.5 hours on alkaline cells or 5.5 hours on Ni-MH cells rated at 1,900 mAh (both figures from Roland spec; varies by use). It also runs on USB bus power at 500 mA. No AC adapter is included in the box.
Does the TR-6S have individual voice outputs?
No. The TR-6S outputs through a single stereo mix jack and a headphone jack. For multi-track DAW recording, the TR-6S USB audio connection routes tracks individually.
What MIDI connections does the TR-6S have?
The TR-6S has standard DIN 5-pin MIDI IN and MIDI OUT jacks (confirmed from Roland spec sheet; no MIDI Thru on this unit), plus USB type-B carrying both MIDI and audio.
Can the TR-6S load custom drum samples?
Yes. Any of the 6 tracks can be loaded with a custom WAV or AIFF file from an SD card (SDHC supported). Custom samples combine with ACB voices within the same kit.
What built-in drum voices does the TR-6S include?
The TR-6S includes ACB voices from the TR-808, TR-909, TR-606, TR-707, CR-78, and more. Roland has continued adding voices through firmware updates; check the current Roland product page for the current full ACB instrument list.
What are the physical dimensions of the TR-6S?
Per Roland's spec page: 224 mm wide, 132 mm deep, 60.1 mm tall, weight 705 g including batteries.
